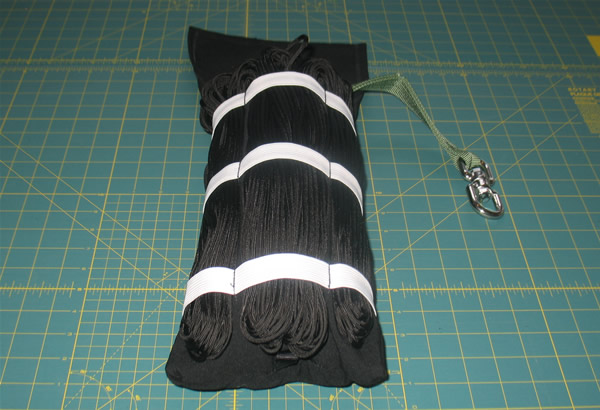

Other Products - We sell everything needed for your recovery needs Deployment Bags We can make you a deployment bag as well as custom bridles and shock cords. Let us know when you order if you need shock cords of specific length and loops. We can quickly sew these for you, no more bulky knots! Deployment Bag We now offer a range of deployment bags that cover a wide range or requirements - and you can now order directly online. Sizing your bag First choose a bag that fits your airframe diameter. You can also choose a bag that is smaller, however it should not be way smaller or it could shift in the airframe. Next choose a bag length that can accommodate at least your chutes specified packing volume. Longer is OK, but shorter can be a problem. It is sometimes possible to pack a larger chute into a given bag volume but you should contact us to be sure. If space is at a premium we can assist with both sizing your chute and bag. We can even customize your chute to make it more compact if needed.
Dual or Multiple Chutes - If you want to deploy multiple chute simply make sure the sum of your chutes packing volumes will fit into the bag chosen, easy!

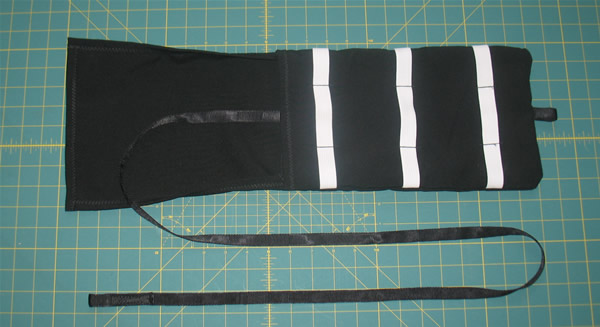

Custom Sized We can also quote you a custom bag when you have special requirements, please contact us. When to use Deployment Bags A deployment bag is a good idea for parachutes of around 84" or larger. They are essential if you are using multiple parachutes. We use high quality Nomex fabric and thread for our bags. Bags come with elastic straps to hold the shroud lines and shock cords. We tack the elastic bands in the center making them ideal for dual parachute use. Let us know if you want a bag for triple parachutes and we will split the elastic into three sections - one for each chute.
Here is how to pack our deployment bags: Please see our new How to pack a Deployment Bag Pictorial! ANd note the directions below. 1 – If needed connect the inner retaining strap to the crown loop on the chute. This keeps the bag connected to the chute (unless your doing a “free bag” style of deployment). Connect the other end of the strap (the outside end) to a deployment chute or something else that can pull the bag off the chute. 2 – Starting at the crown of the chute grab a handful of material and stuff it into the end of the bag. 3 – Keep grabbing handfuls and continue stuffing the chute in very tightly. The bag will stretch some but it is sized to fit into the airframe. 4 – Finally stuff the skirt of the chute in. If there is room for any shroud lines also stuff these in. When done this way the bag can be simply turned upside down and with a few shakes the chute will fall out. It’s simple and reliable. 5 – Z-fold the remaining shroud lines under the straps being careful not to bind them up. Neatness counts! It is not necessary to fold all the shroud lines. Or some can be put in the bag if they will fit... Do not put the bridle under the straps, it will bind-up. Do no pre-fold the chute and stuff that in the bag – it won’t come out! Even through the bag is made of Nomex I like to use a heat protector blanket regardless to keep it nice and clean. We resell the Tinder Rocketry Tender Descender recovery tethers. These are generally used when you want to do dual-deployment out of the same end of your airframe. Use the tether with a deployment bag for your main to restrain the main inside your rocket untill you want your main to come out.

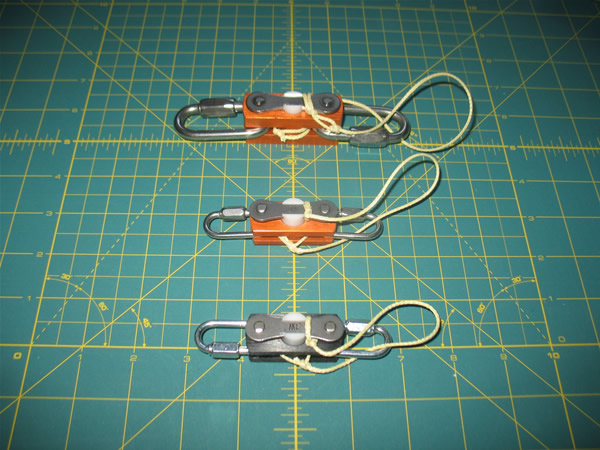

We have three modes available: The Tender Descender HDPE is 1 ½”L x ¾”W x ¾”T (without quick links installed) and weighs in at just over 39 grams, (including quick links) yet can take an initial shock load of up to 600 pounds and will deploy with up to 200 pounds attached. This device is intended for rockets weighing up to 25 pounds. Price is just $59. The Tender Descender L2 has the same dimensions as the HDPE version but is made from heat-treated, copper-toned, anodized aluminum. The L2 weighs just 52 grams with its stainless steel quick links, yet can take an initial shock load of as much as 2,000 pounds and will release with up to 500 pounds attached. This device is intended for the bigger rocket projects up to around 60 pounds. Price is $85. The Tender Descender L3 for those REALLY BIG projects. This incredibly strong tether is made from heat-treated, copper-toned, anodized aluminum, and measures 2 ¼”L x ¾”W x 1”T (Without the quick links attached). The L3 weighs just 5 ounces including the ¼” stainless steel quick links. This device can take an initial shock load of over 5,000-pounds, releasing cleanly with over 1,000 pounds attached. This device is intended for rockets weighing up to 300 pounds or more. Price is $129. All tethers work via a simple principle. Two quick-links are restrained by pins pushed through a machined housing. A small BP charge is loaded into the housing chamber in the center, just .25G for the smaller units, .35G for the larger one. When fired the pins are pushed out and the quick-links are released. The Kevlar cord keeps the pin assembley and the housing attached to one of the quick links. The other quick-link is completely released. Nomex Protectors We offer a range of Nomex Blankets sized for your airframe. Click HERE to order. Kevlar Recovery Harness Get a high quality Kevlar Harness to attach your shock cord to. We also make the Cherry Bomb anti-zipper devices for our harnesses. Click HERE to order. Custom Shock Cord We sell 5/8" and 1" shock cord by the yard. Get pre-sewn ends and optional swivels pre sewn onto the ends. Click HERE to order. Contact Us - Email us or call and let us know what you want - we'll get back to you with exact pricing and delivery and you'll have your Fruity Chute in no time. Contact us at: fruitysales "@" fruitychutes.com (anti-spam written email address, remove the quotes and spaces to contact us), or call 408-499-9050 Check back soon for more information.
|
|
||||||||||||||||||||||||
